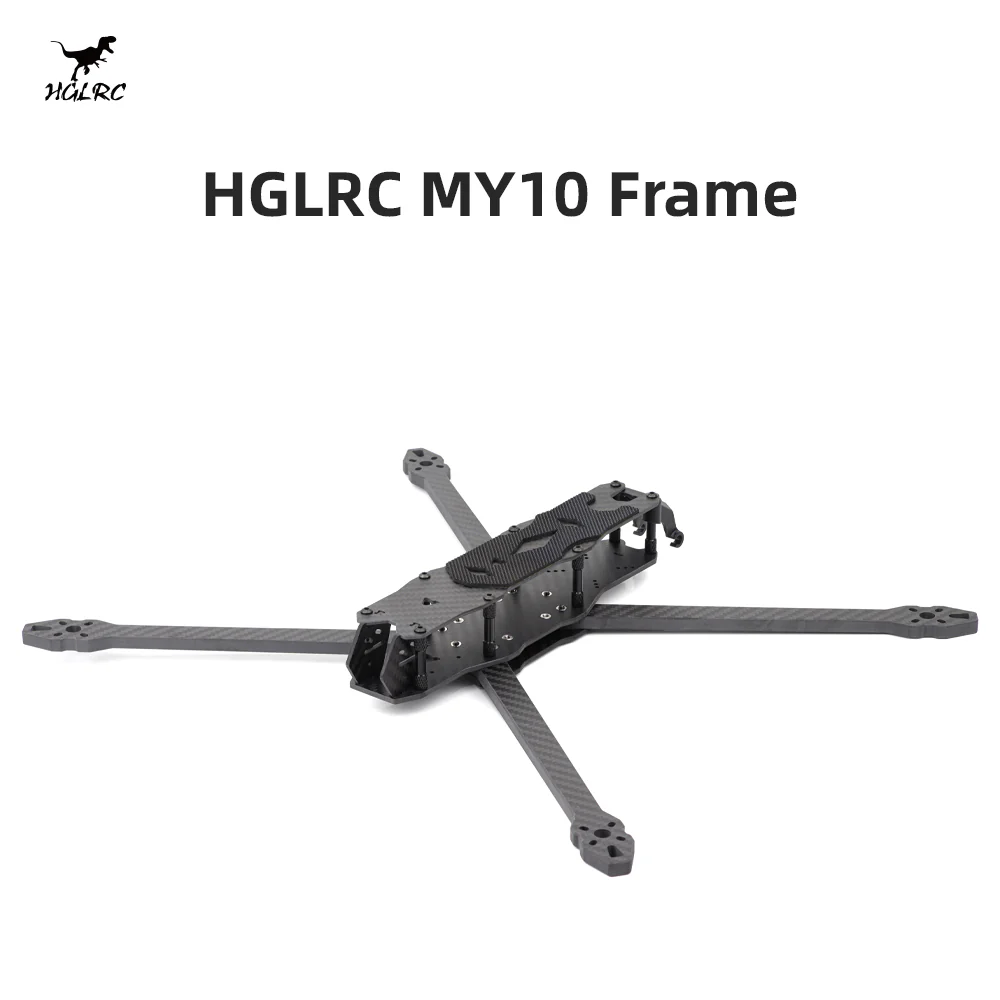

HGLRC MY10 10-inch Long-range & Payload FPV Frame
Original price was: ₹5,900.00.₹5,499.00Current price is: ₹5,499.00.

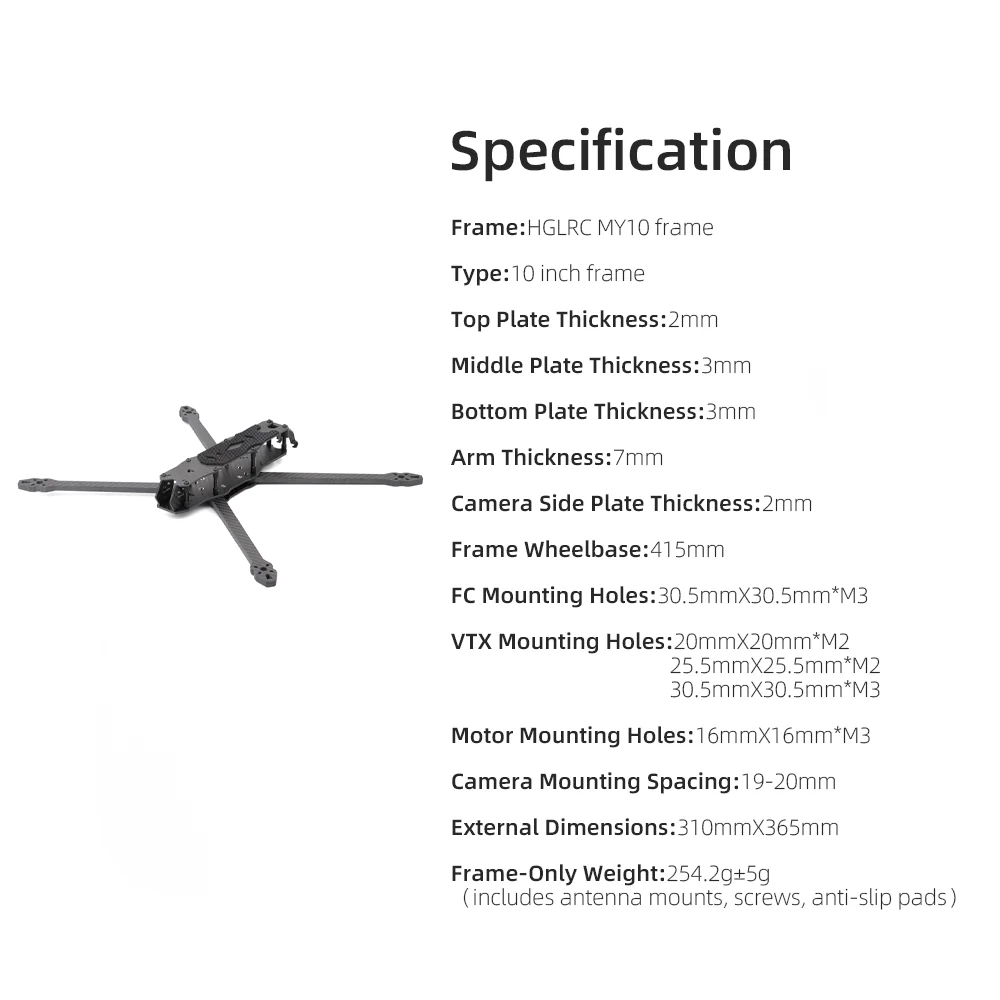

Frame : HGLRC MY10 Frame
Type : 10-inch Frame
Top Plate Thickness : 2mm
Midd le Plate Thickness : 3mm
Bottom Plate Thickness : 3mm
Arm Thickness : 7mm
Camera Side Plate Th ickness: 2mm
Whee lbase: 415mm
FC Mount ing Pattern:30.5mm x 30.5mm (M3)
VTX Mounting Pattern:30.5mm x 30.5mm (M3)
25.5mm x 25.5mm (M2)
20mm x 20mm (M2)
Motor Mount ing Pattern : 16mm x 16mm (M3)
Camera Mounting Size : 19-20mm
Overa ll Dimens ions (LxW): 310mm x 365mm
Frame-On ly Weight: 217g ±5g (Inc ludes antenna mount, screws, anti-s l ip pad)

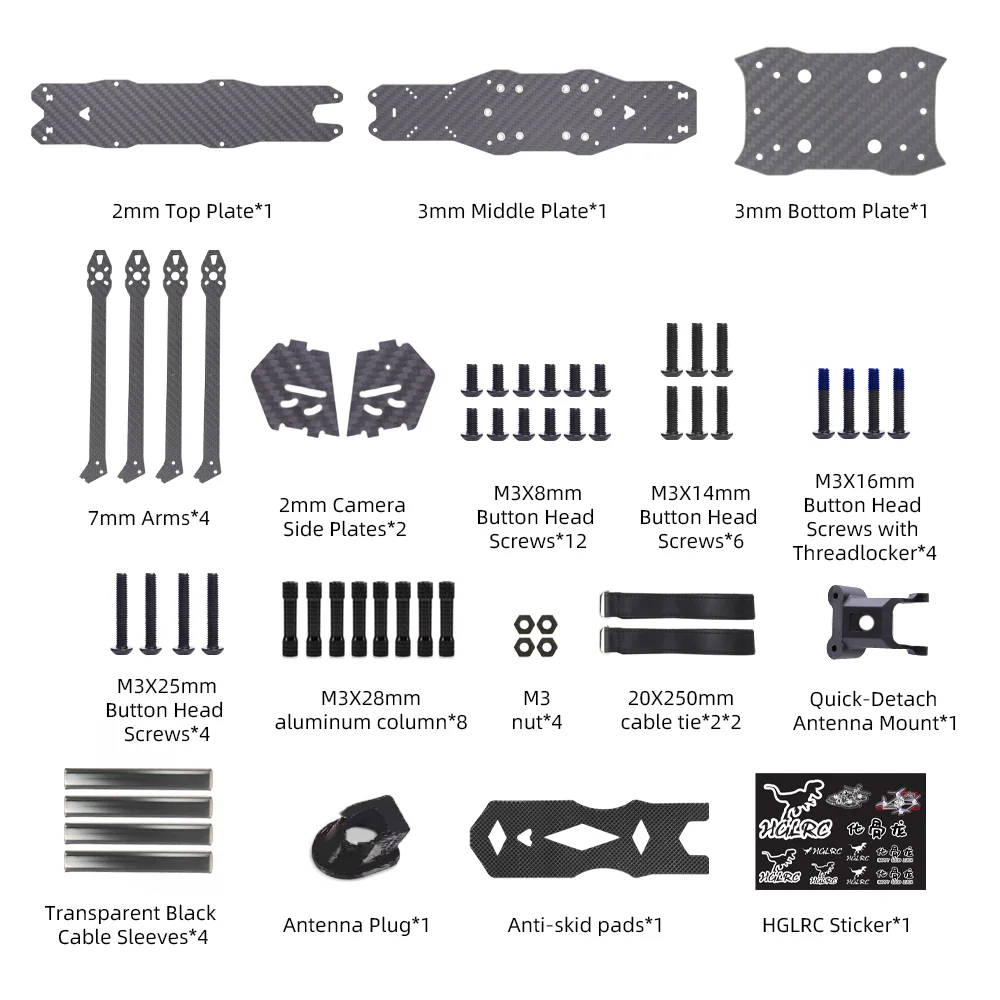

Package Contents :
1x HGLRC MY10 Frame Set
12x M3x8mm Button Head Screws 6x M3x14mm Button Head Screws 4x M3x16mm Button Head Screws
4x M3x25mm Button Head Screws 8x M3x28mm Aluminum Standoffs 4x M3 Ny lon Lock Nuts
1x Antenna Mount
1x Antenna Cap/Plug
4x Motor Wire Tubes/Gu ides 2x 440mm Cable T ies
1x Anti-Sl ip Battery Pad
1x HGLRC Large St icker Sheet
