CoreWing F405 WING V2 – Fixed-Wing & VTOL Flight Controller Stack
CoreWing F405 WING V2 – Fixed-Wing & VTOL Flight Controller Stack
The CoreWing F405 WING V2 is a purpose-built flight controller system designed specifically for fixed-wing aircraft, flying wings, and VTOL builds. Where most flight controllers are adapted from multirotor designs, the F405 WING V2 is engineered from the ground up for the unique demands of long-range cruisers, autonomous mapping platforms, and complex VTOL configurations — combining a three-board modular stack with wireless configuration capability that removes the need for USB cables in the field entirely.
Three-Board Modular Stack

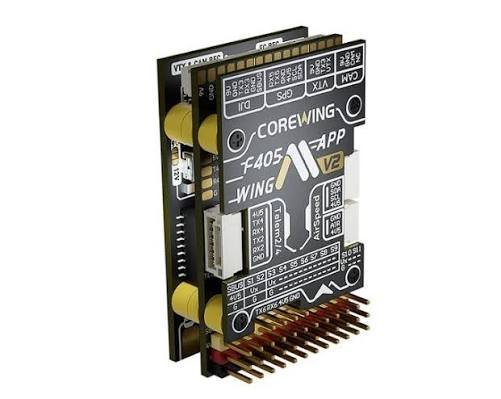

The F405 WING V2 consists of three separate boards — the Flight Controller, the Power Distribution Board (PDB), and a Wireless USB Extender — stacked together into a single compact avionics hub. Separating these functions across dedicated boards means cleaner wiring, better heat distribution, and easier replacement of individual components if one board is damaged without scrapping the entire stack.
Wireless Configuration — No USB Required
The most significant feature of the F405 WING V2 is its built-in Bluetooth, BLE, and WiFi wireless configuration. Connect from a smartphone app or QGroundControl on a laptop without touching a USB cable. For field tuning, pre-flight checks, and parameter adjustments at the flying site, this alone is a major time-saver — especially on large fixed-wing builds where the flight controller is buried deep inside the fuselage.
INAV and ArduPilot — Full Dual Firmware Support
The F405 WING V2 natively supports both INAV and ArduPilot firmware, including ArduPlane for VTOL operations. This dual support makes it one of the most versatile fixed-wing FCs available — suitable for everything from casual FPV cruising on INAV to fully autonomous waypoint missions, terrain following, and VTOL motor management on ArduPilot. Switch firmware based on your mission without buying a different board.
Plug-and-Play Connectivity

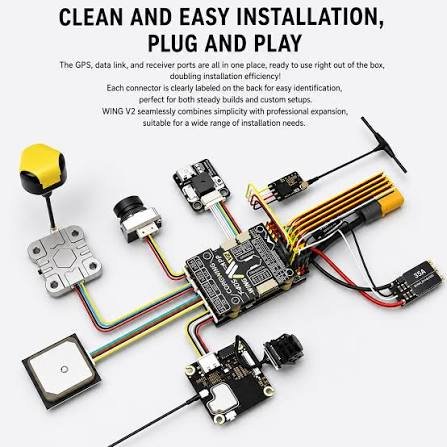

The F405 WING V2 takes a solder-free approach for most peripherals, with dedicated plug-and-play connectors for:
- Digital video systems — DJI, Walksnail Avatar, HDZero
- GPS and compass modules
- RC receivers
- Analog cameras via built-in AT7456E OSD
With 6 UARTs and 12 PWM outputs (11 servo/motor + 1 LED), the F405 WING V2 handles even the most complex VTOL configurations with multiple control surfaces, tilt rotors, and auxiliary motors without running out of outputs.
Clean, Filtered Power for Every Peripheral

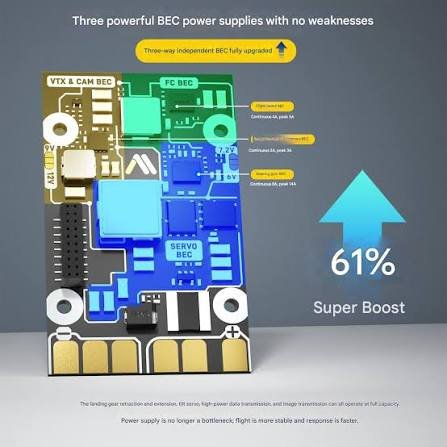

The integrated PDB accepts 2S–6S LiPo input (7V–36V) and provides three separate regulated outputs:
- 5.2V @ 2.4A — FC and peripherals
- 9V @ 3A — Video transmitter
- 4.9V @ 4A continuous — Servos and motors
Separate BEC rails for video and servo power eliminate the voltage noise and brownout issues that plague builds running everything from a single BEC.
Hardware at a Glance
The STM32F405 MCU running at 168MHz provides the processing headroom needed for ArduPilot’s complex autopilot algorithms. The ICM-42688-P IMU is one of the most respected gyro and accelerometer combinations in current FC design — known for low noise and excellent vibration rejection, critical for fixed-wing builds that experience different vibration profiles than multirotors. The SPL006-001 barometer handles altitude hold and altitude-based flight modes reliably.
Specifications
| Spec | Detail |
|---|---|
| MCU | STM32F405 @ 168MHz |
| IMU | ICM-42688-P |
| Barometer | SPL006-001 |
| OSD | AT7456E (Analog) |
| Input Voltage | 7V–36V (2S–6S LiPo) |
| BEC 1 | 5.2V @ 2.4A (FC/Peripherals) |
| BEC 2 | 9V @ 3A (VTX) |
| BEC 3 | 4.9V @ 4A (Servo/Motor) |
| Wireless | BLE, WiFi, Classic Bluetooth SPP |
| PWM Outputs | 12 (11 servo/motor + 1 LED) |
| UARTs | 6 |
| FC Weight | 8.9g |
| PDB Weight | 11.4g |
| Wireless Board | 4.2g |
| Firmware | INAV, ArduPilot, ArduPlane |
Package Includes
- 1× CoreWing F405 WING V2 Flight Controller
- 1× Wireless / USB Extender Board
- 1× Cable & Pin Header Set
⚠️ PDB board and GPS module are not included in the base package. Check variant options before ordering.
